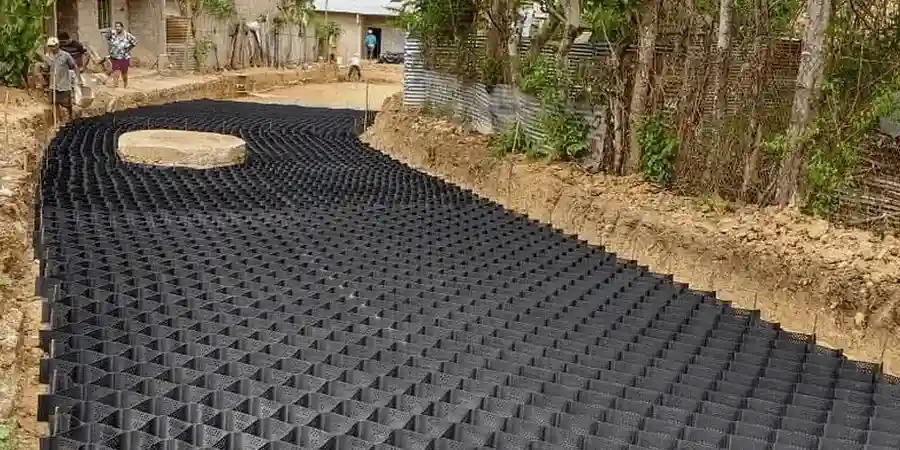

With an annual rainfall exceeding 1,100 mm and a geology that transitions from Quaternary alluvium in the Fitzroy River floodplain to Tertiary basalt caps on the higher ground, Rockhampton presents a distinct set of conditions for ground reinforcement. Geocell design here must account for the high seasonal moisture variation that can trigger differential movement in the clay-rich alluvial flats. A properly engineered geocellular confinement system distributes loads laterally, reducing bearing pressure on the subgrade and limiting rutting in access roads or storage yards. Before specifying the cell geometry and infill material, we typically run a subgrade evaluation to establish the CBR and plasticity index of the in-situ soil.
Geocell design in Rockhampton must accommodate the transition from expansive basaltic clays to compressible alluvial deposits within a single project boundary.
Scope of work
Area-specific notes
Rockhampton's urban expansion into former floodplain areas has pushed infrastructure onto soft alluvial soils that were historically avoided. These deposits, often containing layers of compressible silty clay, can experience consolidation settlements of 50-100 mm under fill loads if not properly confined. Without a geocell design tailored to the specific moisture regime and organic content of the local soil, differential settlement can crack pavement surfaces and distort retaining structures. The risk is compounded by the cyclic wet-dry climate, which can cause the clay subgrade to shrink and swell, progressively loosening the confinement unless the cell wall stiffness and infill interlock are correctly specified for the expected vertical stress range.
Standards used
AS 4678-2002 (Earth-retaining structures), AS 1726-2017 (Geotechnical site investigations), FHWA NHI-05-037 (Geosynthetic design guidelines)
Linked services
Geocell slope and load support design
We develop the cell geometry, infill specification, and anchorage layout for embankments, retaining walls, and unpaved roads. The design considers the soil profile, groundwater conditions, and traffic loads, producing a panel layout drawing and a construction sequence note.
Subgrade verification and CBR testing
Before the geocell is placed we carry out field CBR tests and dynamic cone penetrometer surveys to confirm the in-situ bearing capacity. This data is used to adjust the cell height and infill thickness, ensuring the confinement system delivers the required performance without overdesign.
This service complements our laboratory testing work for a complete project analysis.
Typical parameters
Watch how it works
FAQ
What soil conditions in Rockhampton require geocell reinforcement?
Low-strength alluvial clays with CBR values below 3 and high-plasticity basaltic clays that swell on wetting are the most common candidates. Geocell design is also applied on slopes steeper than 1:3 where erosion control and surface stability are needed.
How does geocell design differ for a road versus a slope application?
For roads the focus is on load distribution and rutting prevention, so cell depth typically ranges from 100 to 150 mm with a well-graded crushed rock infill. For slopes the priority is tensile anchorage and vegetation support, requiring deeper cells (150-200 mm) and a topsoil infill with erosion control matting.
Is a geotechnical investigation required before geocell design?
Yes. We need at minimum the soil profile, Atterberg limits, and field CBR or DCP data to select the correct cell geometry and to verify that the subgrade can support the construction loads without excessive deformation.
What is the typical cost range for a geocell design in Rockhampton?
The cost for a tailored geocell design including subgrade testing and a construction-ready panel layout typically falls between AU$1,140 and AU$4,210, depending on site area, slope complexity, and the number of soil profiles required.
